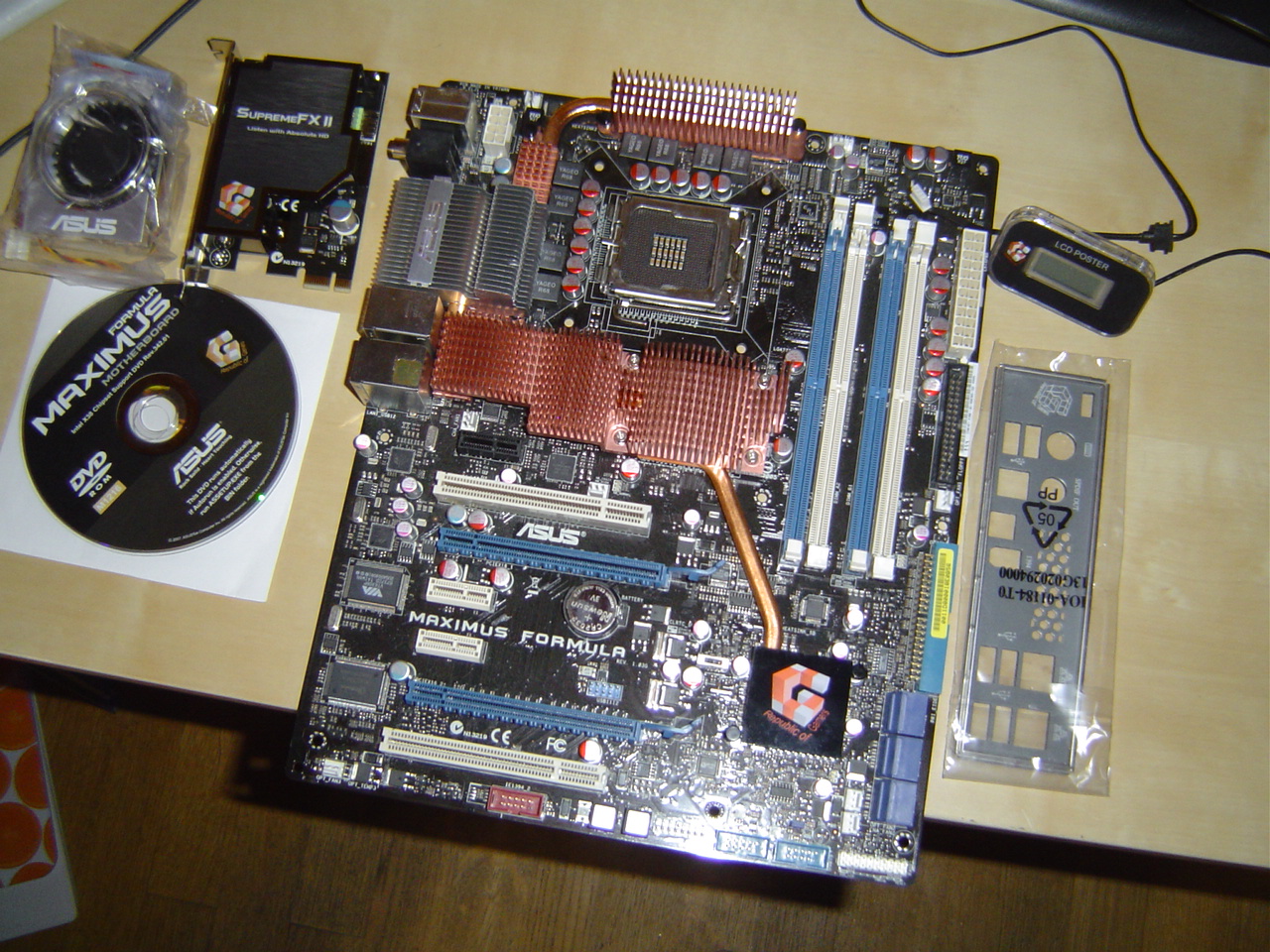

Verkaufe mein Maximus Formula da ich auf ein P45 Board gewechselt habe.
Board ist 100% Funktionstüchtig.
Zubehör ist alles Dabei + OVP und Rechnung auch.
Preis: 210 Fr. inkl.
Hier die Datne zum Board:
CPU
› LGA775 socket for Intel® Core™2 Extreme / Core™2 Quad / Core™2 Duo / Pentium® Extreme / Pentium® D / Pentium® 4 Processors
› Support Intel® next generation 45nm Multi-Core CPU
› Compatible with Intel® 06/05B/05A processors
› Refer to http://www.asus.com for Intel CPU support list
Chipset
› Intel® X38/ICH9R with Intel® Fast Memory Access Technology
Front Side Bus
› 1600 / 1333 / 1066 / 800 MHz
Memory
› Dual channel memory architecture
› 4 x DIMM, support max. 8GB, DDR2-1200*/1066/800/667 MHz, ECC, non-ECC and un-buffered memory
› DDR2 1200 is O.C. speeds.
› Refer to http://www.asus.com or this user manual for the Memory QVL(Qualified Vendors Lidts).
Expansion Slots
› 2 x PCIe 2.0 x16 slot, support at full x16, x16 speed
› 3 x PCIe x1 ( the PCIEx1_1 (black) is compatible with audio slot)
› 2 x PCI 2.2
VGA
› Support ATI CrossFire™ graphics cards
Storage
› ICH9R Southbridge:
› 6 x SATA 3.0 Gb/s ports
› Intel Matrix Storage Technology supports RAID 0, 1, 5 and 10
› JMicron® JMB368 PATA controller:
› 1 x UltraDMA 133/100/66/33 for up to 2 PATA devices
LAN
› Dual Gigabit LAN controllers, both featuring AI NET2
› Support Teaming Technology
Audio
› SupremeFX II Audio Card:
› ADI 1988B 8-channel High Definition Audio CODEC
› Noise Filter
› Coaxial, Optical S/PDIF out at back I/O
IEEE 1394
› 2 x 1394a ports(1 port at back I/O, 1 port onboard)
USB
› Max. 12 USB 2.0 ports(6 ports at mid-board, 6 ports at back panel)
Special Features
› LCD Poster
› Onboard Switches: Power / Reset / Cls CMOS (at rear)
› ASUS Q-Connector
› ASUS Q-Fan 2
› ASUS EZ Flash 2
› ASUS CrashFree BIOS 3
› ASUS MyLogo3
Overclocking Features
› Extreme Tweaker
› 2-Phase DDR2
› Loadline Calibration
› Intelligent overclocking tools:
› CPU Level Up
› ASUS EPU (Energy Processing Unit)
› AI Gear 3™
› AI Overclocking (intelligent CPU frequency tuner)
› ASUS AI Booster Utility
› O.C Profile
› Overclocking Protection:
› COP EX (Component Overheat Protection - EX)
› Voltiminder LED
› ASUS C.P.R.(CPU Parameter Recall)
Back Panel I/O Ports
› 1 x PS/2 Keyboard port(purple)
› 1 x Optical + 1 x Coaxial S/PDIF Output
› 2 x LAN (RJ45) port
› 6 x USB 2.0/1.1 ports
› 1 x IEEE1394a port
› 1 x Clr CMOS switch
Internal I/O Connectors
› 3 x USB 2.0 connectors supports additional 6 USB 2.0 ports
› 1 x Floppy disk drive connector
› 1 x IDE connector for two devices
› 6 x SATA connectors
› 8 x Fan connectors: 1 x CPU / 1 x PWR / 3 x Chassis / 3 x Optional
› 3 x thermal sensor connectors
› 1 x IEEE1394a connector
› 1 x S/PDIF output connector
› 1 x Chassis Intrusion connector
› 24-pin ATX Power connector
› 8-pin ATX 12V Power connector
› 1 x En/Dis-able Clr CMOS
› System panel connector
BIOS
› 16Mb AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.4, ACPI2.0a Multi-Language BIOS
Manageability
› WOL by PME, WOR by PME, Chasis Intrusion, PXE
Accessories
› LCD Poster
› ASUS Optional Fan
› SupremeFX II Audio Card
› 3 in 1 ASUS Q-Connector Kit
› UltraDMA 133/100/66 cable
› Floppy disk drive cable
› SATA cables
› SATA power cables
› 2-port USB2.0 + IEEE 1394a module
› I/O Shield
› Cable Ties
› User's manual
Form Factor
› ATX Form Factor, 12"x 9.6" (30.5cm x 24.5cm)
